CDH-1575-YD-H

Full Auto Toilet Paper Production Line

Functions and features

This production line consists of 4 parts: full automatic rewinding machine, Log saw cutting machine, single roll packing machine, and middle bag packing machine. It is all full automatic from uploading of jumbo rolls to finished product cutting and output, which is not only smooth running and stable performance, but also saves labor cost and reduces labor intensity. This machine must be the perfect choice for toilet paper production.

Technical Parameter

Power Supply : 380V 50Hz Power :18KW
Jumbo Roll Max Width : 1750mm (can be customized) Jumbo Roll Diameter : ≤1100mm
Finished Product Diameter : Φ80 ~Φ140mm (can be customized) Jumbo Roll Inner Diameter :Φ76mm
Finished Product Inner Diameter : Φ38 ~Φ48mm Speed : 0 ~ 180m/min
Perforation Pitch : 4pcs of anvil blades (115mm) (can be customized) Programming Controller :PLC (Delta)
Paper unwinding unit : 1 ~ 3ply (can be customized) Suitable Paper Gram Weight : 14 ~ 30gsm
Air pressure : 3HP air compressor, ≥5 MPa/ kg (prepared by buyer) Embossing Unit : Steel to Steel with big Roll.
Edge Embossing Unit ( Optional): Steel to Steel, Pneumatic Control Machine Size : 10000*3000*2000mm(L*W*H)
Machine Weight : about 12,000 kgs (whole machine with 40mm Wallboard type)

Main Technical Parameter

Power Supply :380V 50Hz Power :11KW
Jumbo Roll Max Width: 1750mm(can be customized) Design Speed : 120 cuts/min
Toilet Roll Diameter : Φ105 ~Φ115mm(can be customized) Stable Speed : 100 cuts/min
Driving System : Delta Servo Motor Blade Size : Φ610*4.7mm
Machine Size : 6500*2500*2000mm Machine Weight : about 4500kg

Full Auto Toilet Paper Single Roll Packing Machine

Power Supply :380V 50Hz Power :12KW

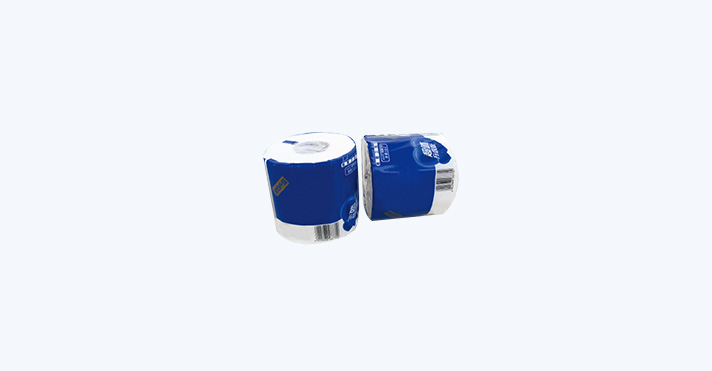

Suitable to pack : single toilet roll with core or coreless Design Speed : 0 ~ 240pcs/ min
Stable Speed : 180pcs/min(with core)120pcs/min(without core) Packing material : BOPP, SPP
Toilet Roll Diameter : Φ90 ~ 120mm(can be customized) Packing film thickness : 0.018 ~ 0.03mm
Toilet Roll Length : 90-150mm(with core) 90 ~ 170mm(without core) Packing film max diameter: 380mm
Bag Making Module : 2 sets (diameter range 90 ~ 120mm) Packing Film inner Diameter: 76mm
Packing Film max width :430mm Air Pressure :≥5MPa/kg (prepared by buyer)
Packing Way : Back sealing with side sealing(Two side sealing modes: total-close and semi-closed, depending on film size)
Machine Size : 6650*2850*1550mm Machine Weight : about 1700kgs

Middle Bag Packing Machine

Power Supply 220V 50Hz
Power 1.19KW
Air Pressure 0.4 ~ 0.5MPA
